Vessel Specifications

General
Type: Supply
Builder: Master Boats
Gross Tonnage:  95 tons
Net Tonnage:  64 tons
Year Built:  2000
Official Number: 1089901
USCG Inspection:  Yes
ABS Loadline:  Yes

Dimensions
Length:  180 ft.
Beam:  44 ft.
Depth:  12 ft.
Clear Deck:  104 ft. x 39 ft.
Clear Deck Cargo:  4056 sq. ft.
Deck Cargo:  700 Long Tons

Propulsion

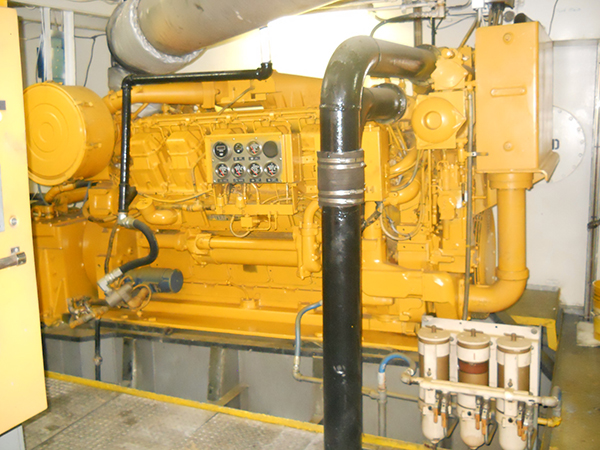

Main Engines:  Cummins
Model:  QSK-38 M-1 (Tier 3)
Max HP:  2600 at 1600 RPM
Steering:  Electric / Hydraulic
Reduction Gear:  Twin Disk
Model:  Twin Disk 5600 - 3.5:1
Stern Controls:  Yes
Speed:  12 Knots
Bow Thruster:  (1) Schottel at 350hp
Propellers:  (2) 5 Blade Nibral



*USCG approved to carry fuel in liquid mud tanks (EEP USCG approved for 100 persons)

Owner/Agent:  Cheramie Marine, LLC

Capacities
Fuel Capacity:  91,000 / 157,560 USG*
Transferable Fuel:  70,000 / 139,000 USG
Ballast Water:  75,000 USG
Liquid Mud:  69,000 USG
Liquid Mud:  1,650 BBLs
Potable Water:  15,000 USG
Lube Oil:  1,700 USG
Dirty Oil:  2,700 USG
Sewage:  3,000 USG
Hydraulic Oil:  560 USG
Fuel Pump Rate:  400 GPM @ 260 ft.
Fire Monitor:  4 in. EKHART
Windlass:  Yes
Anchor:  (2) 1,500 LBs

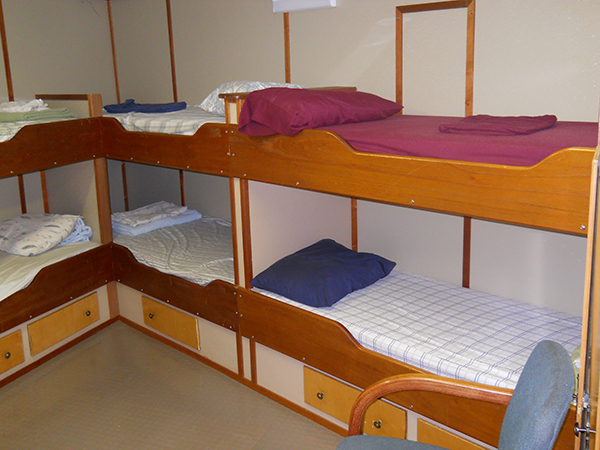

Accomodations
Certified to Carry:  30
Berths:  28
Walk in Cooler:  Yes
Walk in Freezer:  Yes
A/C & Heater:  15 Tons

Generators
(2) 99 KW Cummins QSB7-DM
Voltage:  480

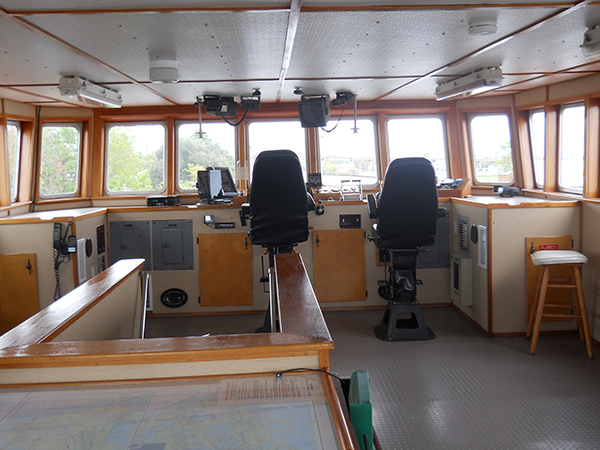

Electronics
Radars:  (2) Furuno
Radios:  (3) VHF  (1) SSB
Fathomter:  Yes
